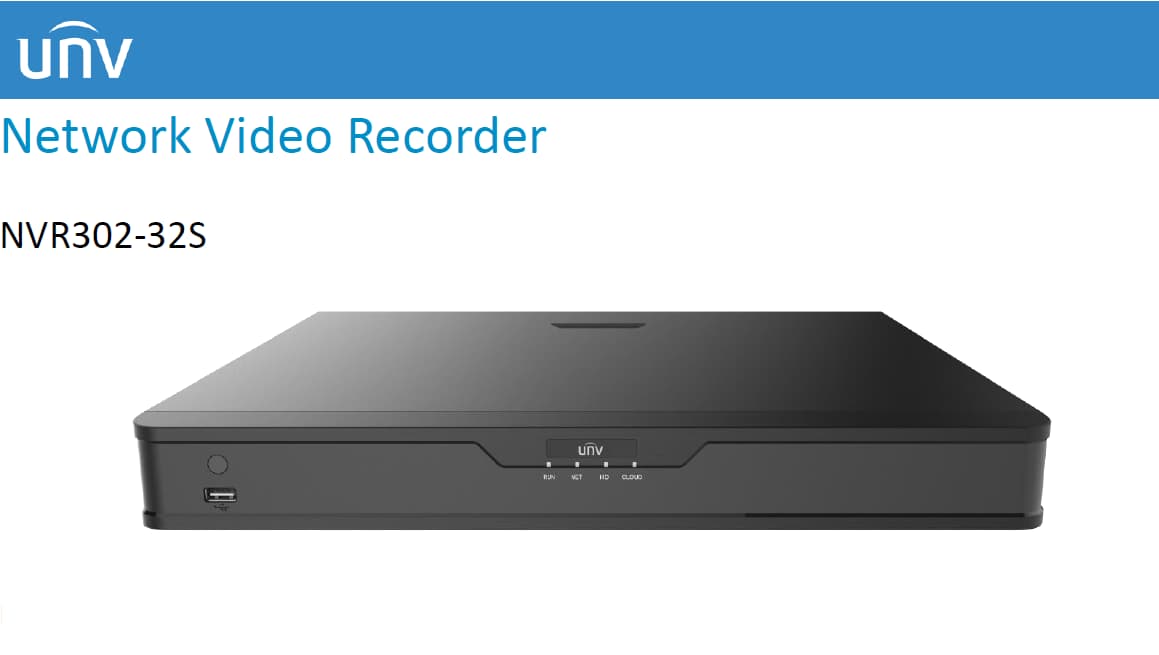

UNV NVR302-32S 32-CHANNEL W/O PoE NETWORK VIDEO RECORDER

Uniview

UNV NVR302-32S 32-CHANNEL W/O PoE NETWORK VIDEO RECORDER

19500

Incoming BW : 160Mbps
1-ch HDMI, 1-ch VGA
2 SATA HDD up to 20TB
H.265
1U
Dual Network Interface

NVR

Quantity:

Description
Specification

• Support Ultra265/H.265/H.264 video formats
• 32-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• Accurate retrieval, instant playback
• 2 SATA HDDs, up to 6TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Model	NVR302-32S
Video/Audio Input
IP Video Input	32-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming bandwidth	160Mbps
Outgoing bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Audio Output	1-ch, RCA
Recording Resolution	8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Synchronous Playback	32-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Decoding format	Ultra265/H.265/H.264
Live view/Playback	8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Capability	2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	up to 6TB for each disk
External Interface
Network Interface	2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
General
Power Supply	12V DC Power Consumption: ≤ 15W( without HDD )
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 315mm ×53mm (15.0" × 12.4" ×2.1" )
Weight (without HDD)	≤ 2.48 Kg (5.47 lb)
